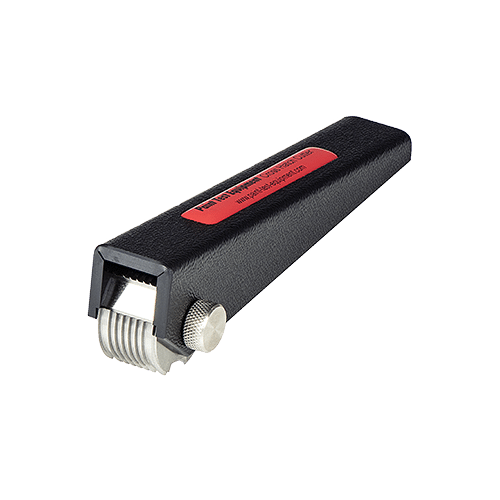

Cross Hatch Cutter

Description

Main Features:

• The coating thickness determines the Cross Hatch Cutter size used.  The 1mm Cross Hatch Cutter is suitable for coatings under 60 microns.  The 2mm Cross Hatch Cutter is suitable for coatings over 60 microns.
• Available in the following Cross Hatch Cutter models:  X2001 1mm Cutter and X2002 2mm Cutter.

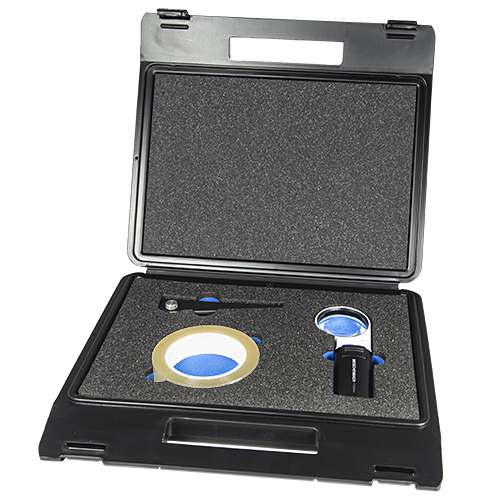

• Supplied in an industrial Carrying Case with adhesion Test Tape (60m) and an x3 Illuminated Magnifier.
• Multiple coatings can be tested for the assessment of the resistance to separation of individual layers of the coating from each other.

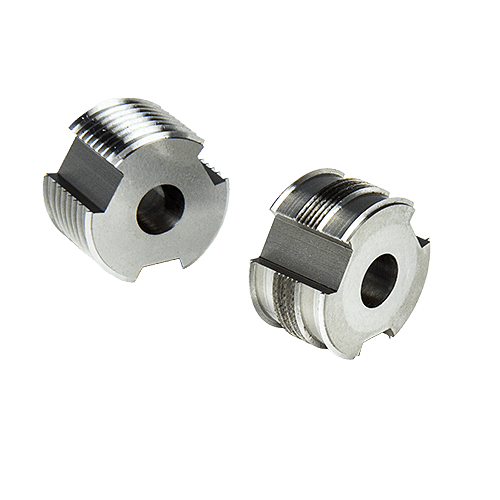

• The hardened tool steel cutting blades are precision-ground with 6 cutting sides so that when one cutting side becomes blunt there are a further 5 cutting sides to use.
• The Adhesion Test Tape has an adhesive strength of 9.5N per 25mm width and is transparent to ensure the correct adhesion to the coating.
