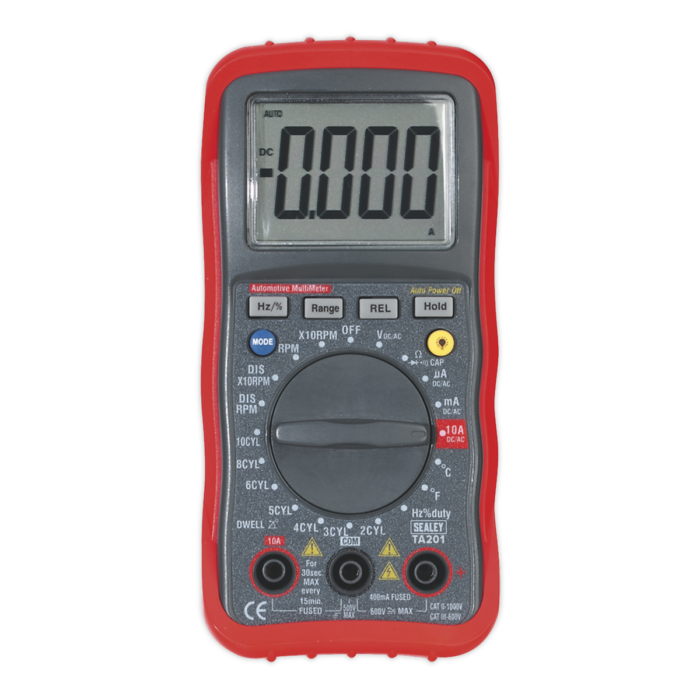

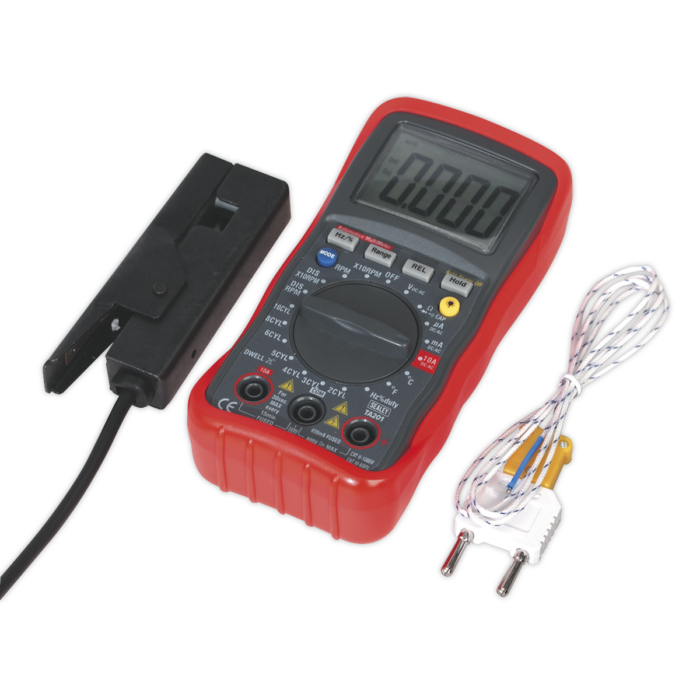

Digital Automotive Analyser 13-Function with Inductive Coupler

Description

• Model No : TA201
• Brand : Sealey
• Nett Weight : 330g
• Tach (rpm) : 4-Stroke; 600-4000 (x1)rpm, 600-12000 (x10)rpm, 2-Stroke; 300-4000 (x1)rpm, 300-6000 (x10)rpm
• Dwell : 2Cyl 0-180°, 3Cyl 0-120°, 4Cyl 0-90°, 5Cyl 0-72°, 6Cyl 0-60°, 8Cyl 0-45°, 10Cyl 0-36°
• AC Voltage : 400mV, 4V, 40V, 400V, 600V (Auto-Ranging, except 400mV)
• DC Voltage : 400mV, 4V, 40V, 400V, 600V (Auto-Ranging)
• AC Current : 400µA, 4000µA, 40mA, 400mA, 4A, 10A (Auto-Ranging for µA & mA)
• DC Current : 400µA, 4000µA, 40mA, 400mA, 4A, 10A (Auto-Ranging for µA & mA)
• Capacitance : 40nF, 400nF, 4µF, 40µF, 100µF (Auto-Ranging)
• Frequency : 4V Range; 5Hz-10kHz, 40 & 400V Ranges; 5Hz-200kHz, 600V Range; 50Hz-1kHz, 400mA Range; 5Hz-5kHz, 10A Range; 5Hz-1kHz
• Duty Cycle : 0.1-99.9%
• Pulse Width : No
• Resistance : 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ (Auto-Ranging)
• Continuity : <150Ω

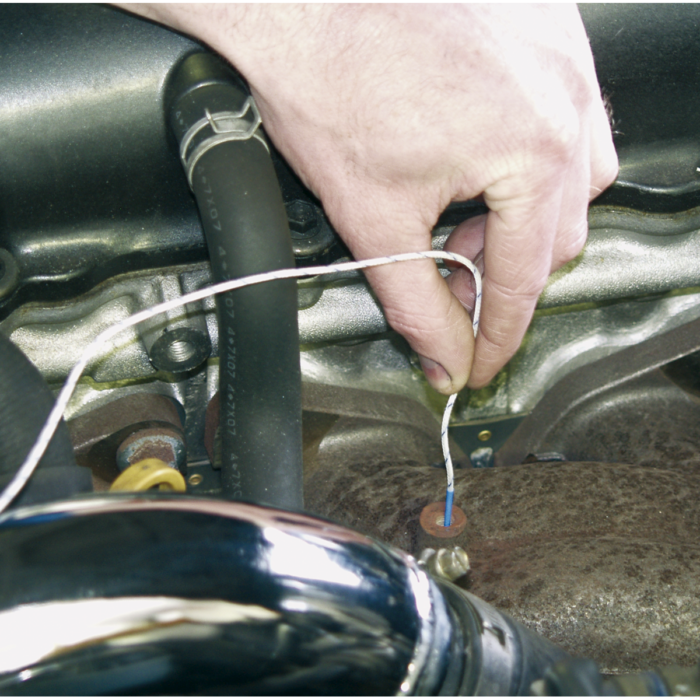

• Temperature : -20 to +760°C/-4 to +1400°F
• IR Temperature : No
• Diode Check : Yes (Typical Test Current 0.3mA)
• Transistor Test : No
• Back Light : Yes
• Bar Graph Display : No
• Display Hold : Yes
• Auto-Ranging : Yes

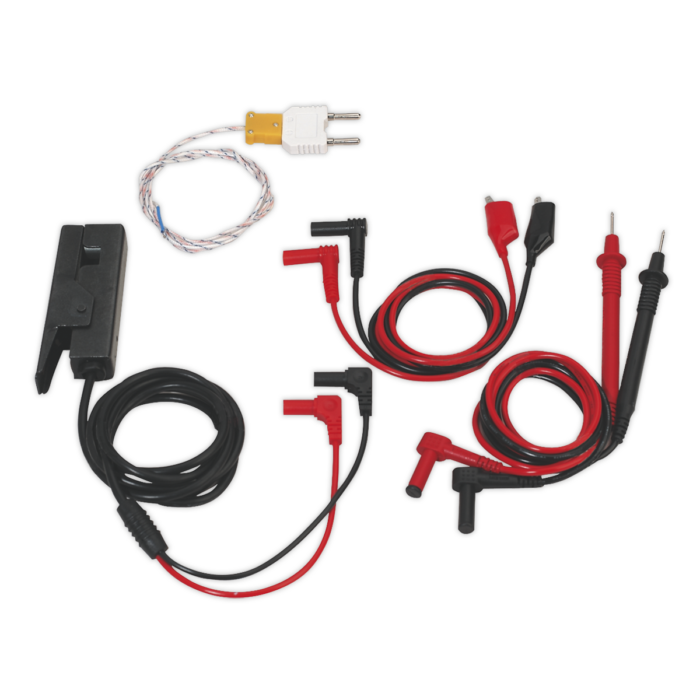

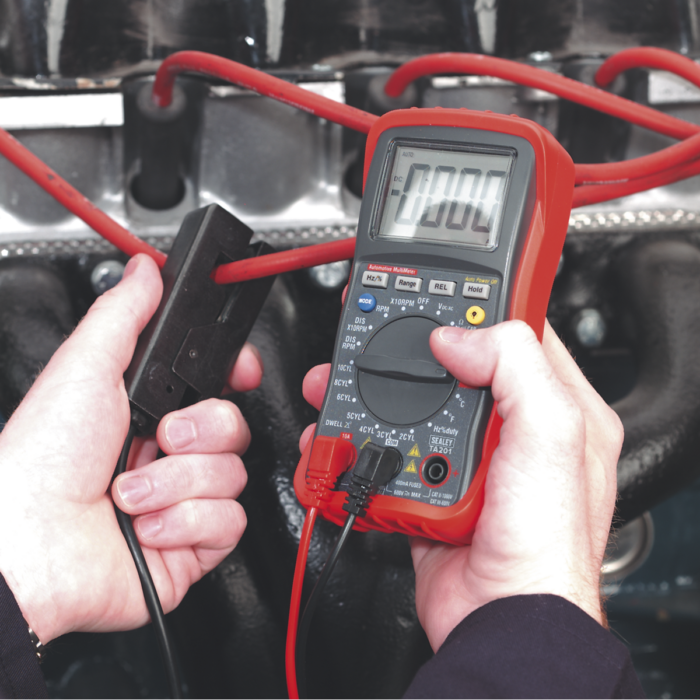

• Inductive Coupler : Yes
• PC Interface : No
• Digits Height : 22mm
• Auto Power Off : Yes
• Low Battery Indicator : Yes
• Batteries (supplied) : 9V (PP3)
• Hi-Impact Case : Yes
• Size (L x W x D) : 146 x 66.2 x 41.5mm
• Weight : 330g
