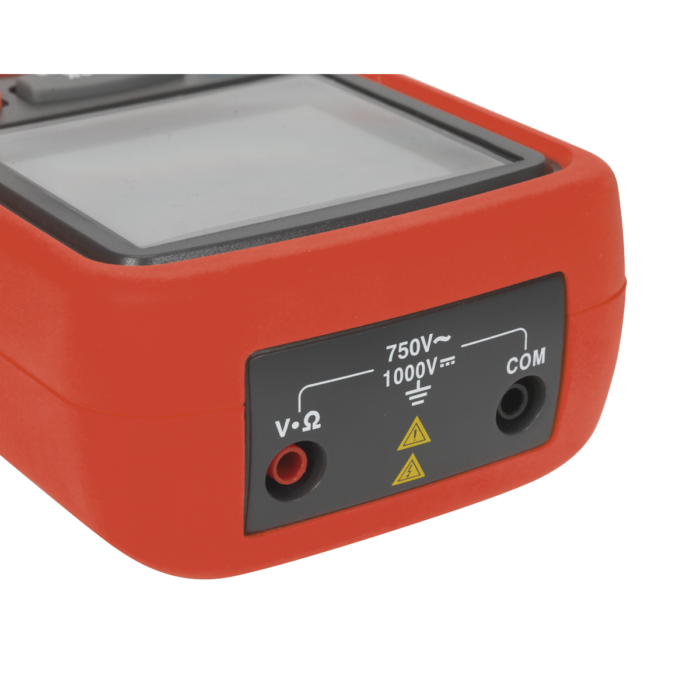

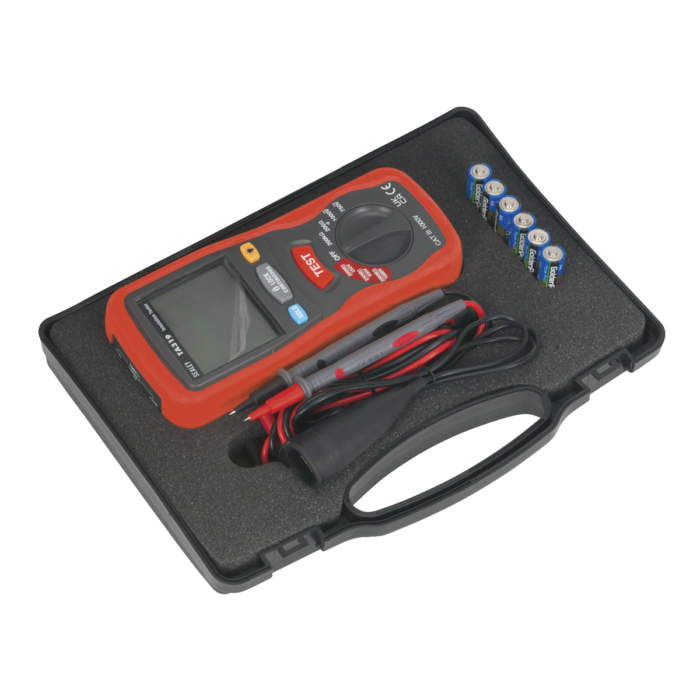

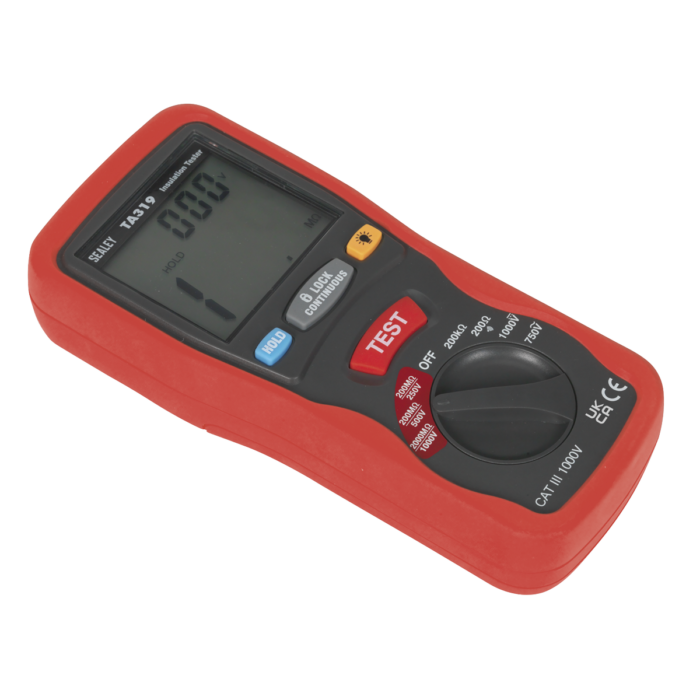

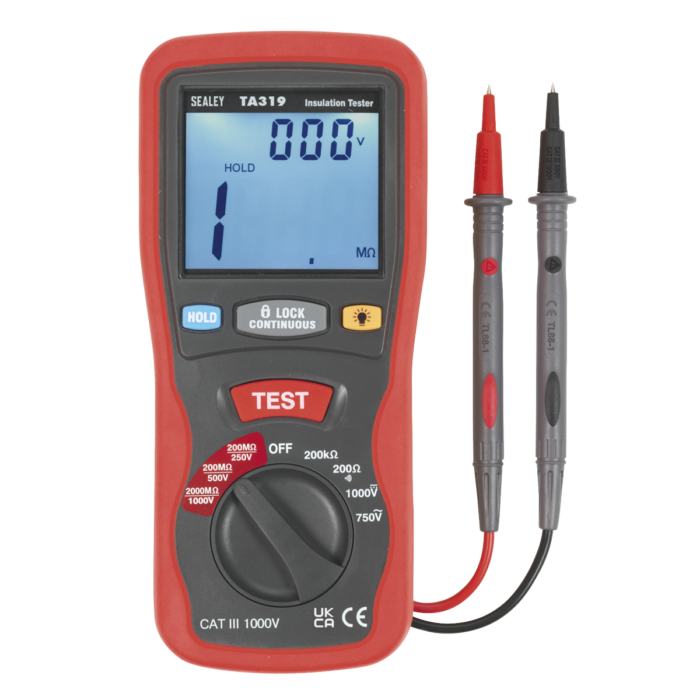

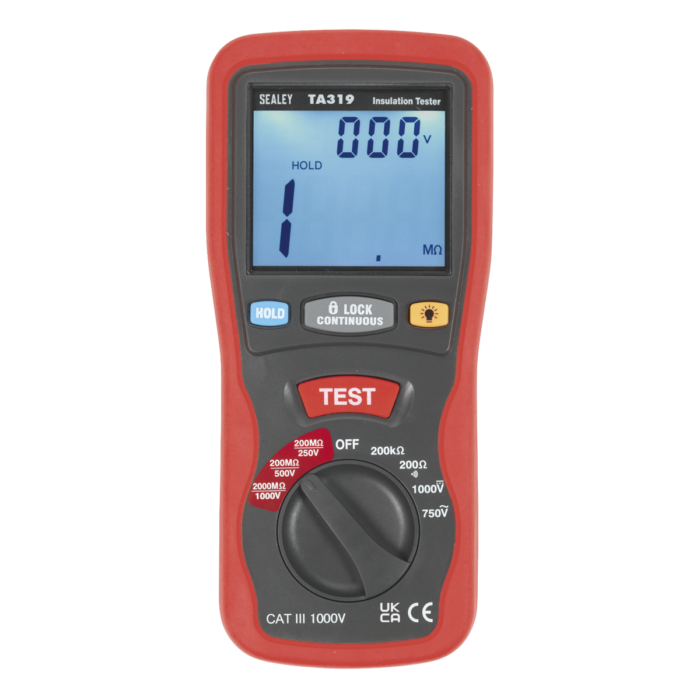

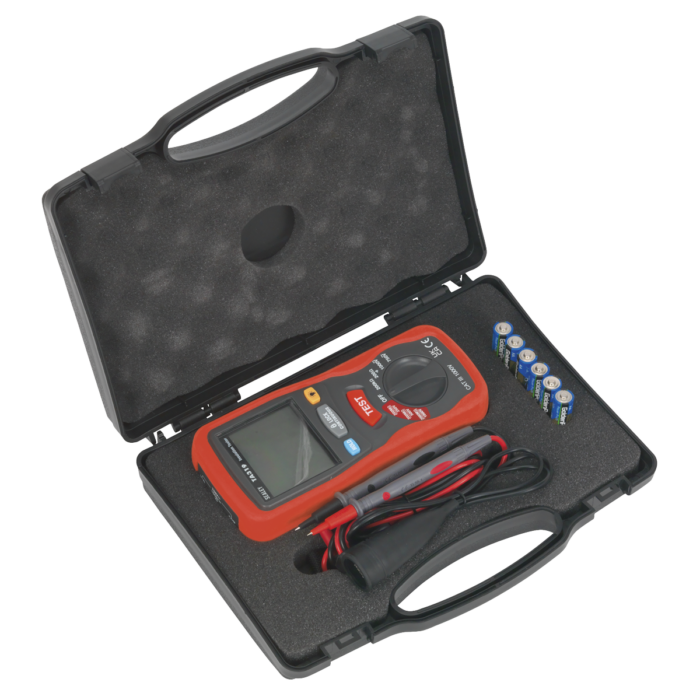

Digital Insulation Tester

Description

– Model No : TA319
– Brand : Sealey
– Nett Weight : 1.29kg
– Voltage AC : Range; 750V, Max Resolution; 1V, Accuracy; (±1.2% ± 10-digits)
– Voltage DC : Range; 1000V, Max Resolution; 1V, Accuracy; (±0.8% ± 3-digits)
– Resistance : Range; 200Ω, 2000Ω, Max Resolution; 0.1Ω, 1Ω, Accuracy; (±1% ± 2-digits)
– Insulation Resistance : Range; 200MΩ, 2000MΩ, Max Resolution; 100kΩ-1MΩ, Accuracy; (±3.5% ± 5-digits)
– Test Voltage : 250V/200MΩ, 500V/200MΩ, 1000V/2000MΩ
– Continuity Test : Active Sound Level; ≤40Ω, Test Current; ≤200mA
– Operating Temperature : 0ºC to +40ºC, (<80%R.H)
– Storage Temperature : -10ºC to +60ºC, (<70%R.H)
– Batteries : 6 x 1.5V (supplied)
