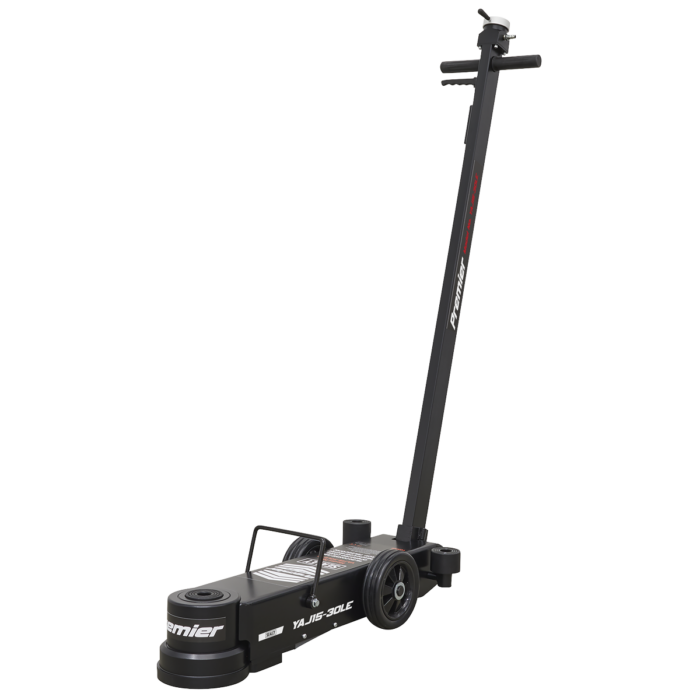

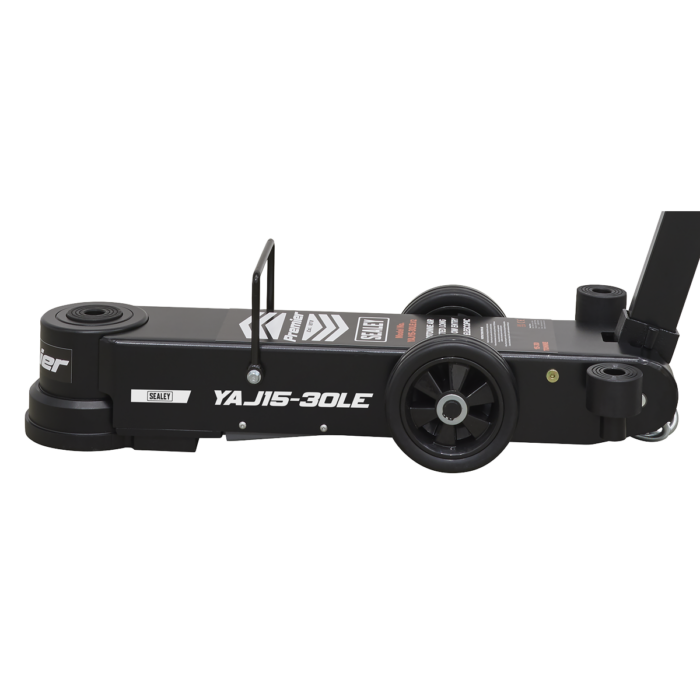

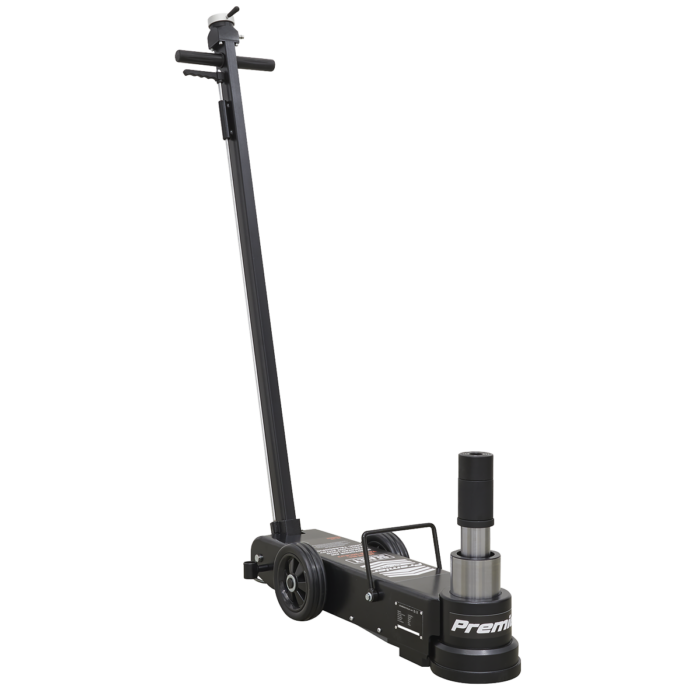

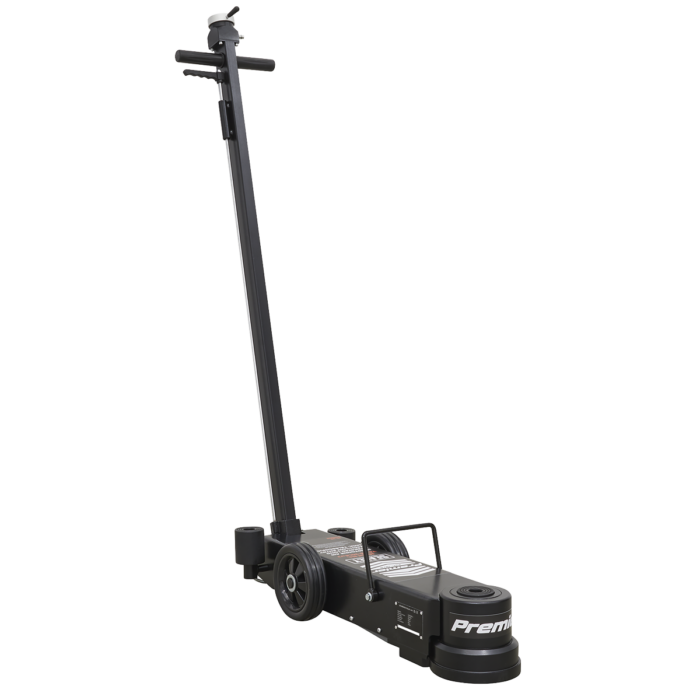

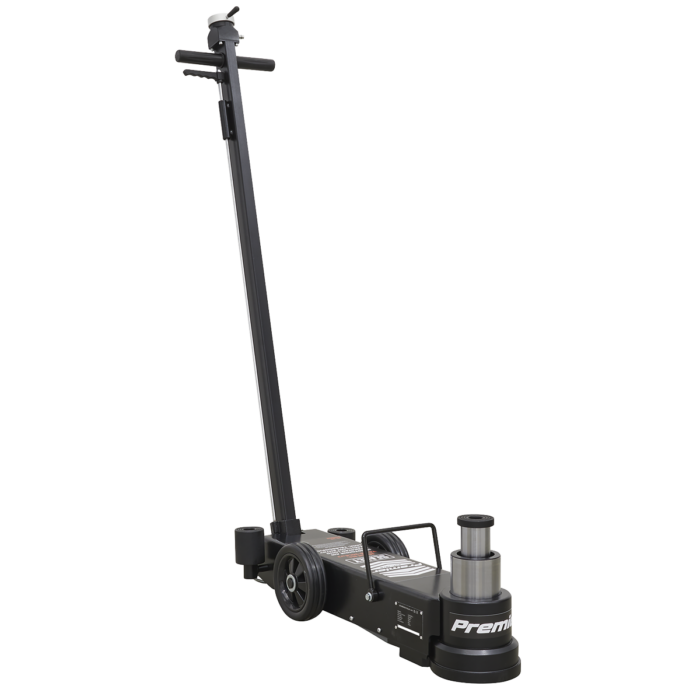

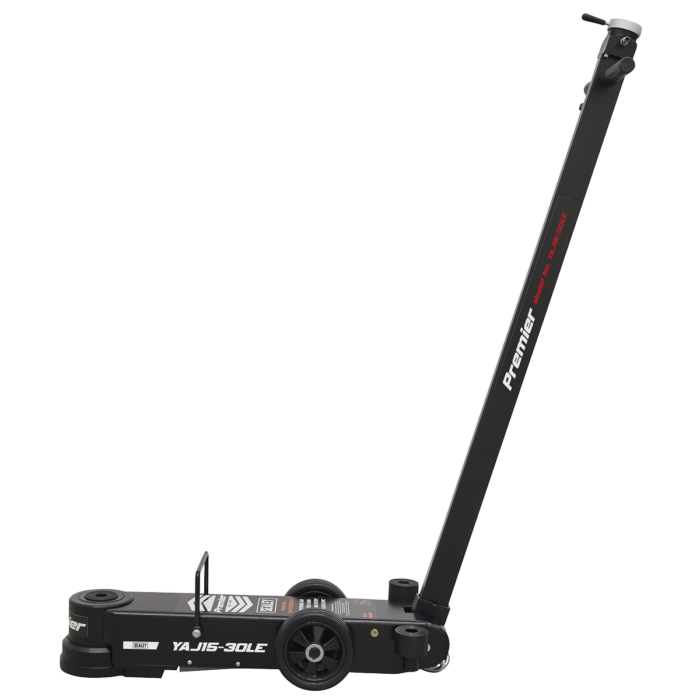

Long Reach / Low Profile Air Operated Telescopic Jack 15-30 Tonne

Description

– Model No : YAJ15-30LE
– Air Consumption : 11.5cfm
– Brand : Sealey
– Capacity : 30 Tonne
– Chassis Length : 810mm

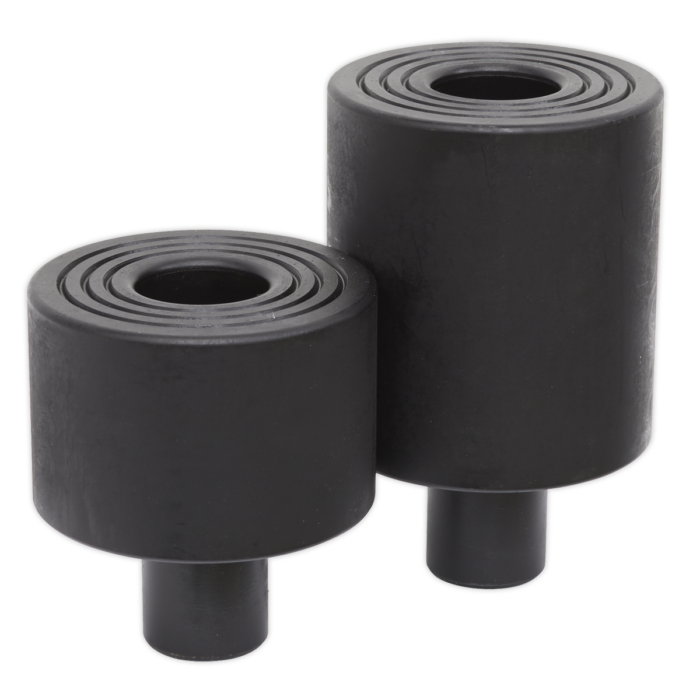

– Extensions : 45/75mm
– Maximum Height (inc. Extension)/Capacity-Stage 1 (mm/tonne) : 343/30
– Maximum Height (inc. Extension)/Capacity-Stage 2 (mm/tonne) : 409/15
– Maximum Height (inc. Extension)/Capacity-Stage 3 (mm/tonne) : n/a
– Maximum Length : 2190mm
– Minimum Saddle Height : 150mm
– Nett Weight : 52kg
– Overall Width : 295mm
– Piston Stroke : 139mm
– Screw Extension : n/a
– Width without Wheels : 215mm
– Working Pressure : 116-174psi
