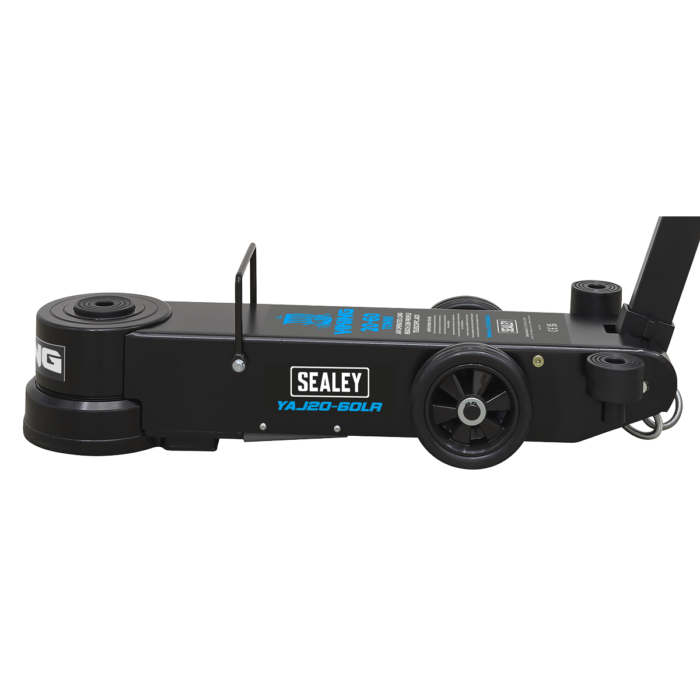

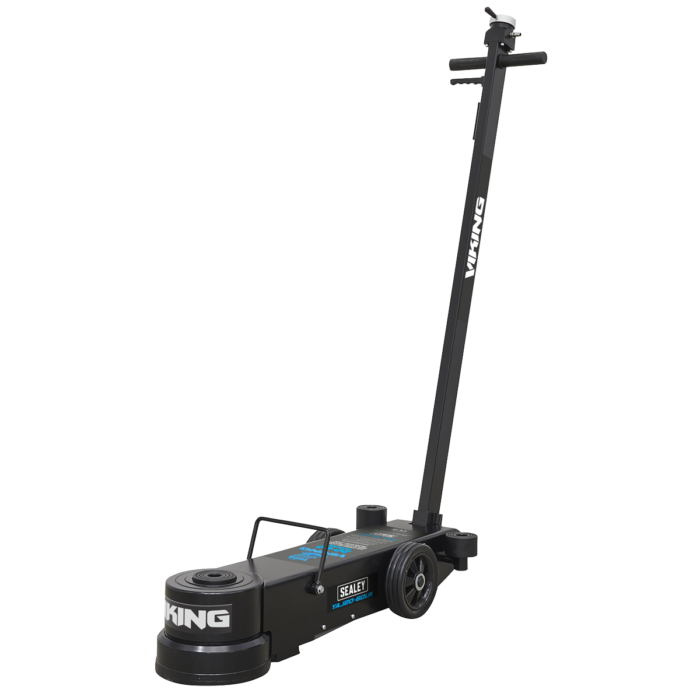

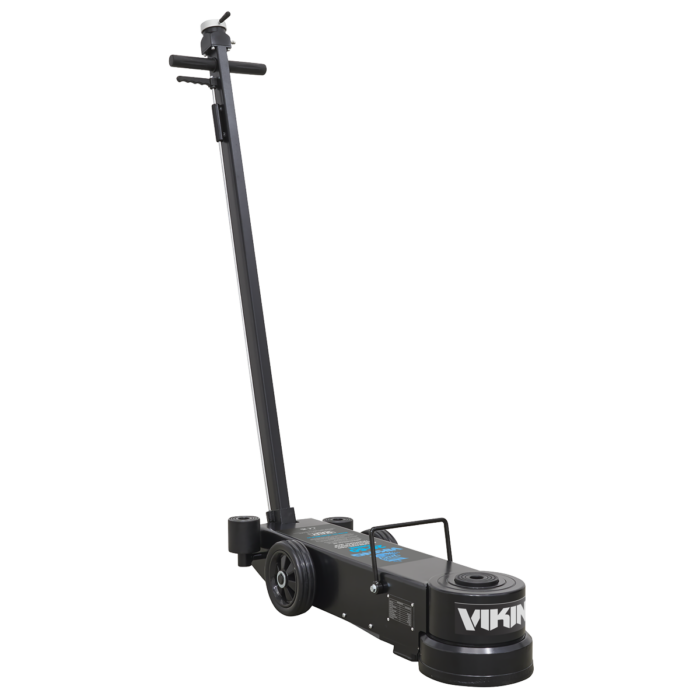

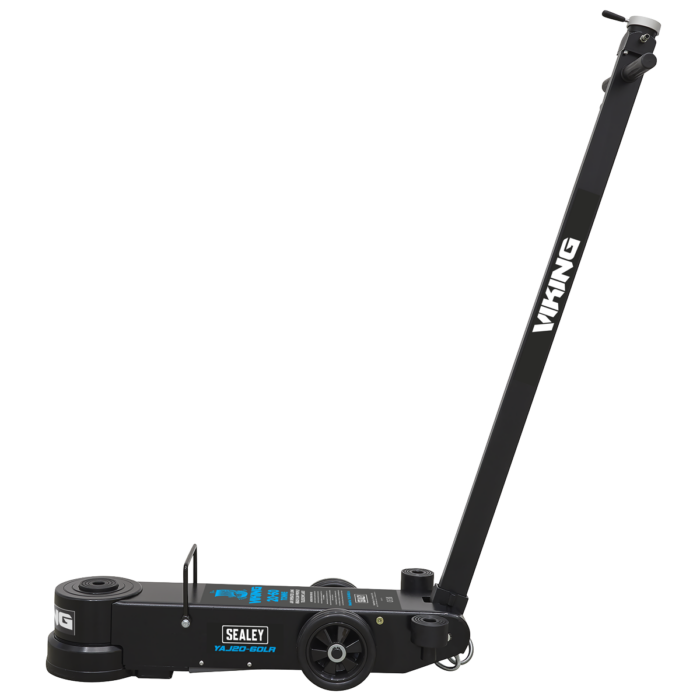

Viking Long Reach / Low Profile Air Operated Telescopic Jack 20-60 Tonne

Description

– Model No : YAJ20-60LR
– Air Consumption : 11.5cfm
– Brand : Viking
– Capacity : 60 Tonne
– Chassis Length : 875mm

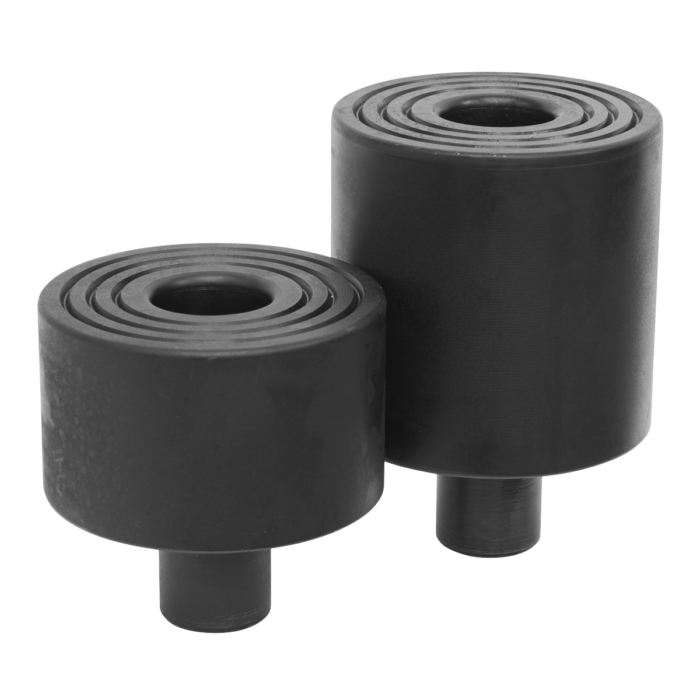

– Extensions : 45/75mm

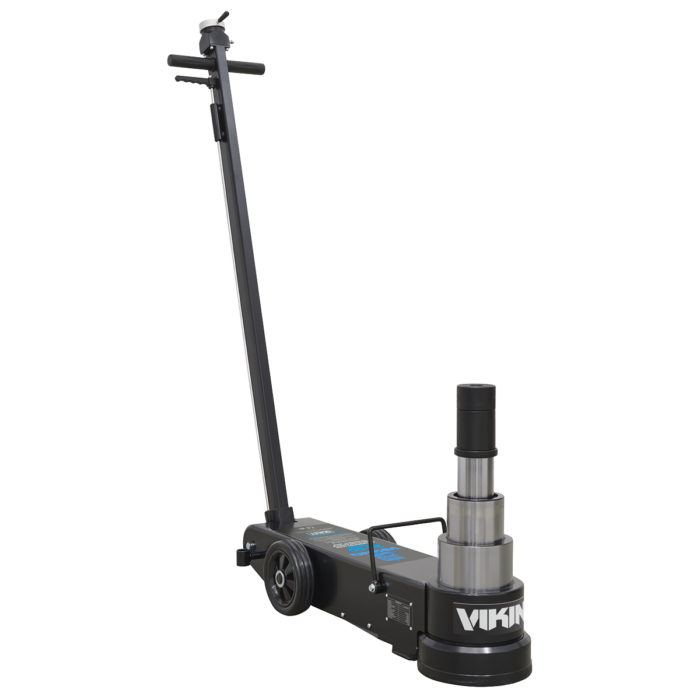

– Maximum Height (inc. Extension)/Capacity-Stage 1 (mm/tonne) : 377/60
– Maximum Height (inc. Extension)/Capacity-Stage 2 (mm/tonne) : 458/40
– Maximum Height (inc. Extension)/Capacity-Stage 3 (mm/tonne) : 542/20
– Maximum Length : 2255mm
– Minimum Saddle Height : 175mm
– Nett Weight : 70kg
– Overall Width : 295mm
– Piston Stroke : 247mm
– Screw Extension : n/a
– Width without Wheels : 215mm
– Working Pressure : 116-174psi
