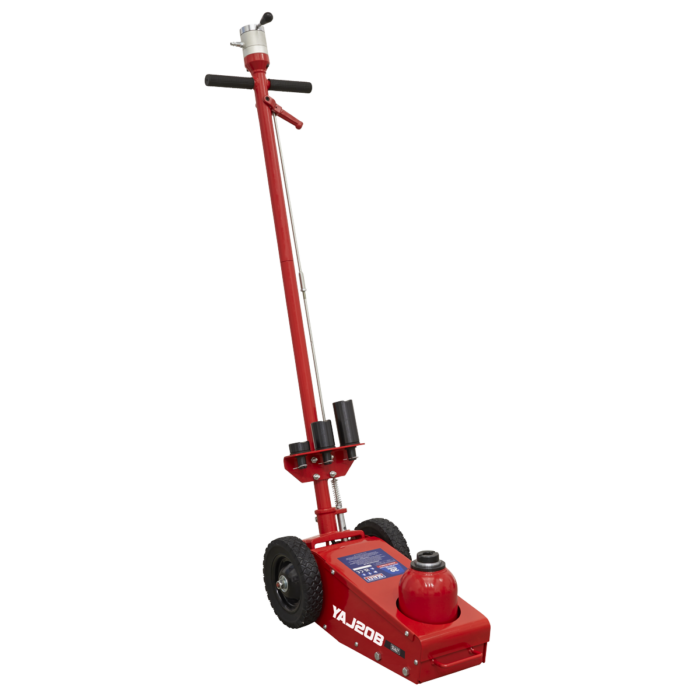

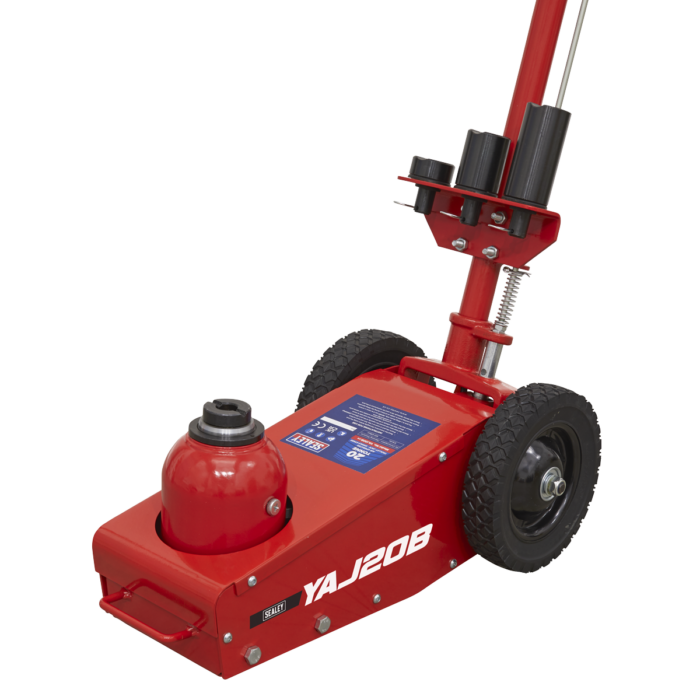

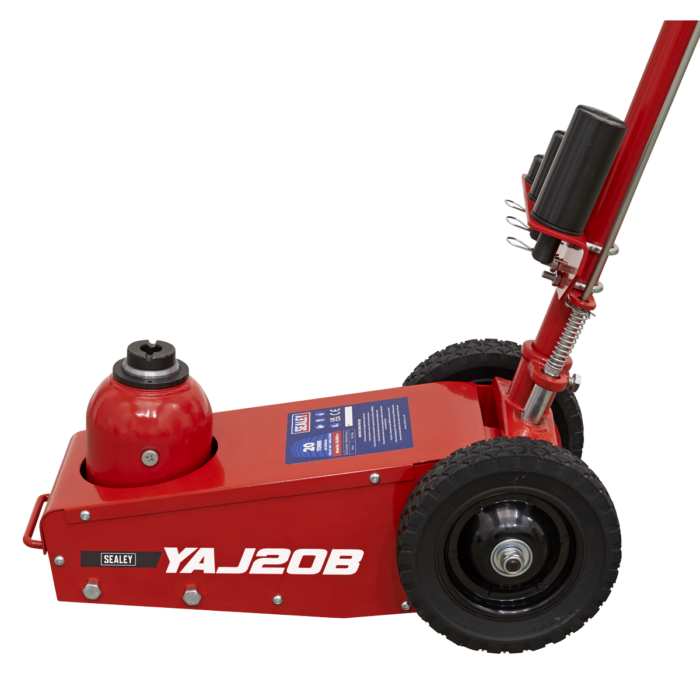

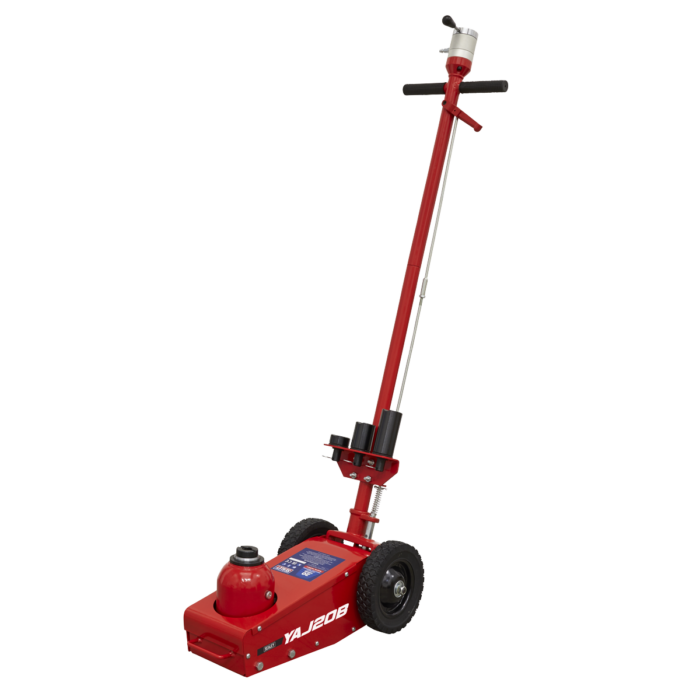

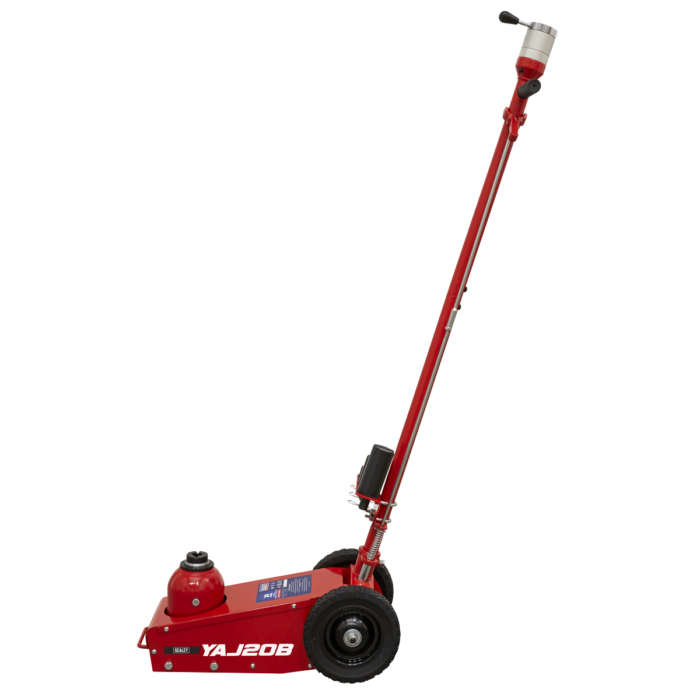

Air Operated Single Stage Trolley Jack 20 Tonne

Description

– Model No : YAJ20B
– Air Consumption : 9.5cfm
– Brand : Sealey
– Capacity : 20 Tonne
– Chassis Length : 575mm

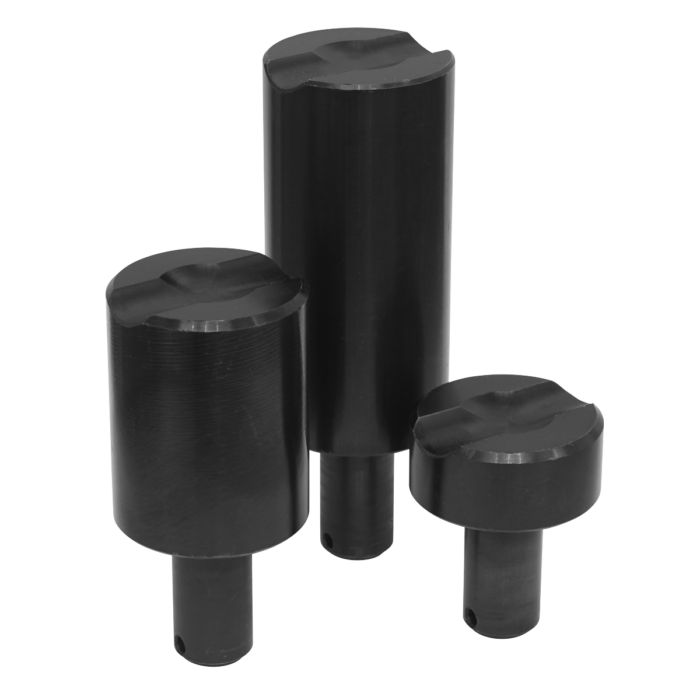

– Extensions : 20/60/90mm
– Maximum Height (inc. Extension)/Capacity-Stage 1 (mm/tonne) : 548/20
– Maximum Height (inc. Extension)/Capacity-Stage 2 (mm/tonne) : n/a
– Maximum Height (inc. Extension)/Capacity-Stage 3 (mm/tonne) : n/a
– Maximum Length : 1270mm
– Minimum Saddle Height : 223mm
– Nett Weight : 32.5kg
– Overall Width : 322mm
– Piston Stroke : 122mm
– Screw Extension : 105mm
– Width without Wheels : 187mm
– Working Pressure : 100-120psi
