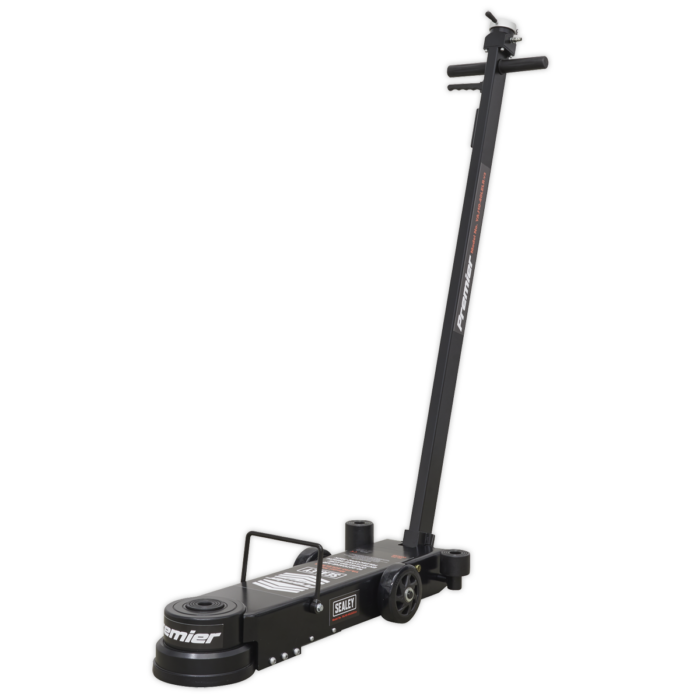

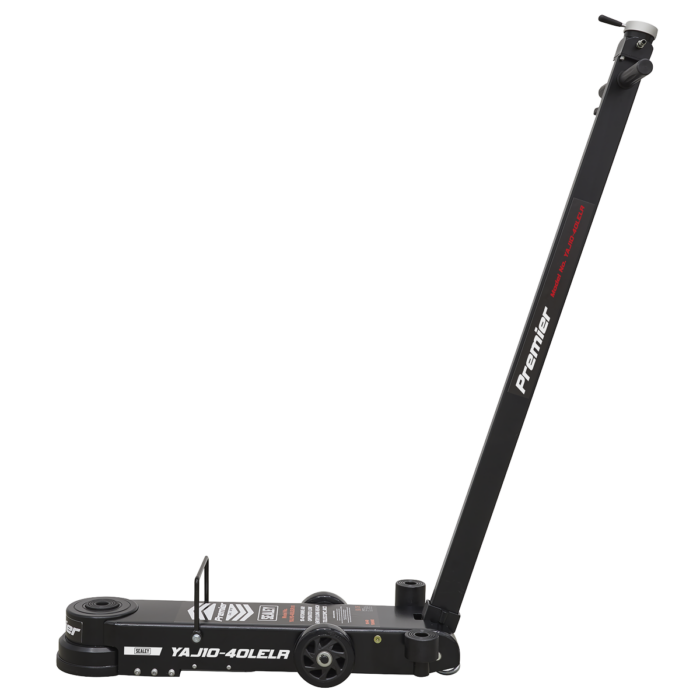

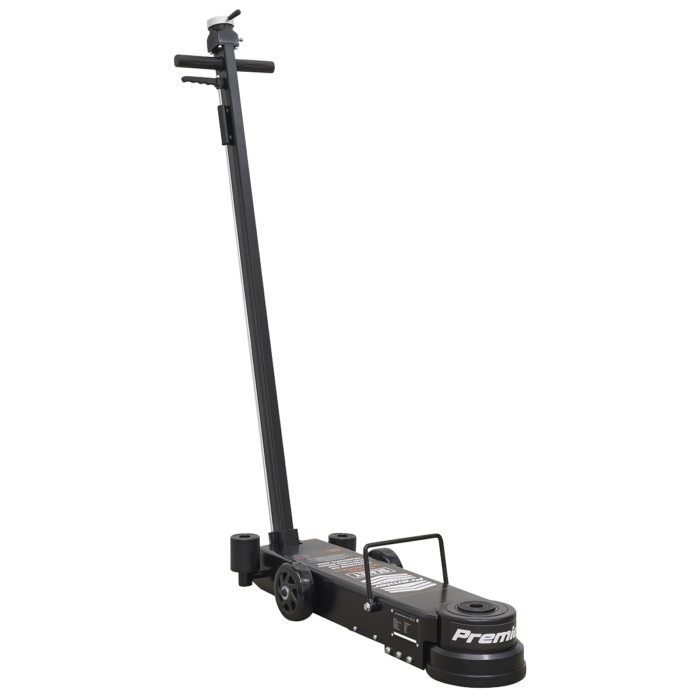

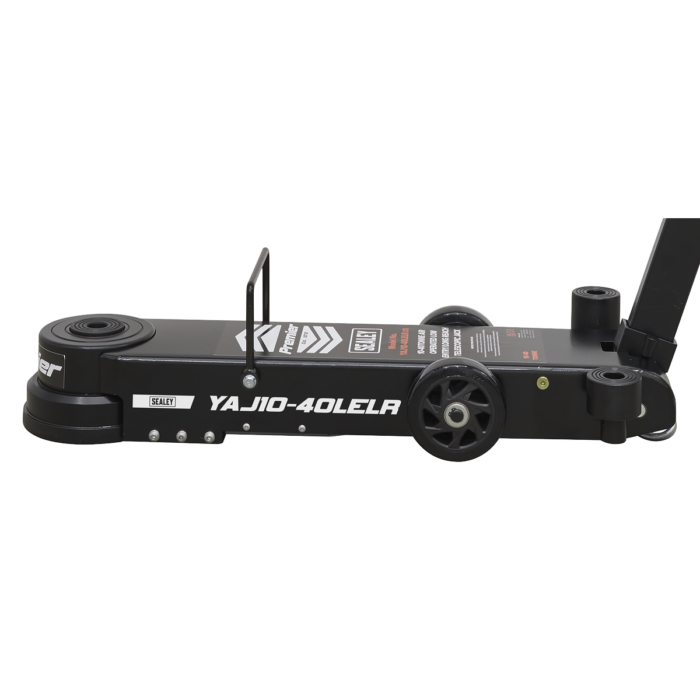

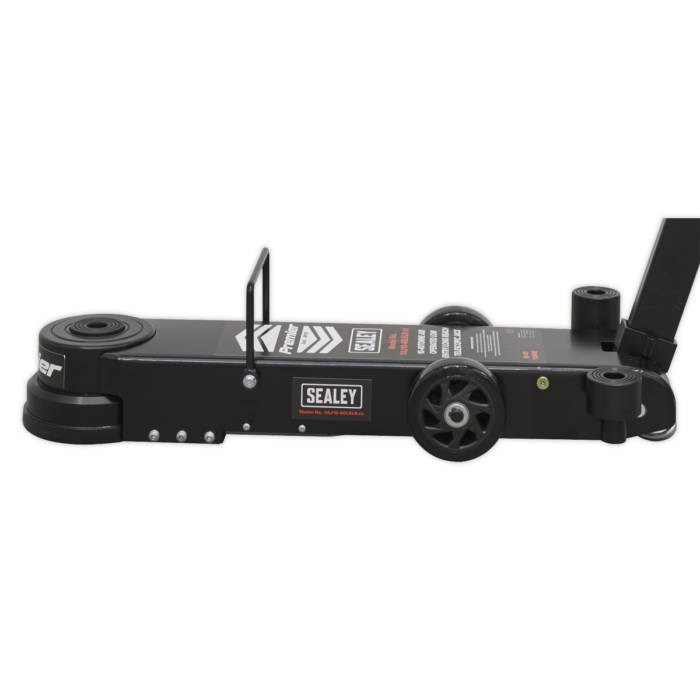

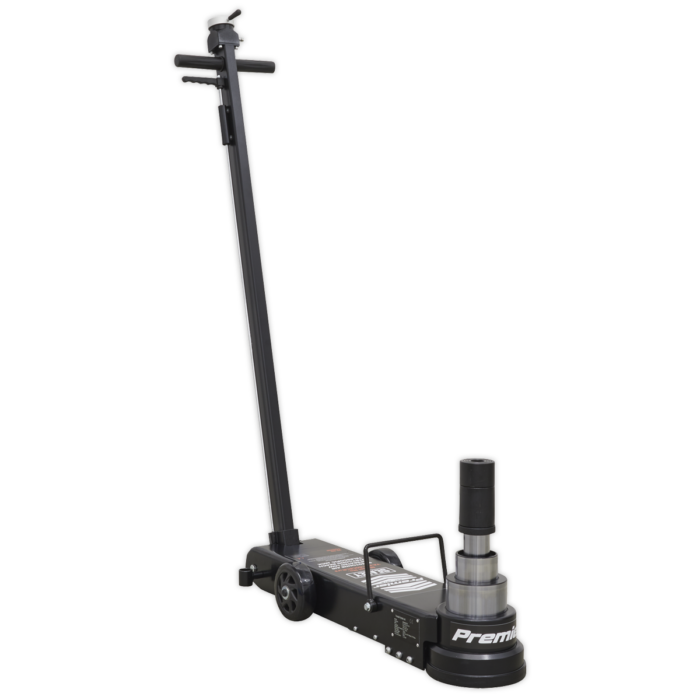

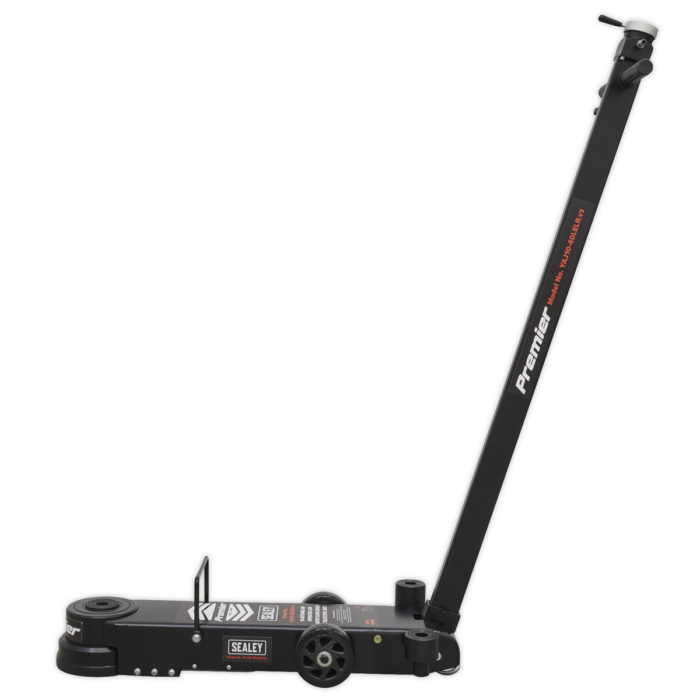

Premier Long Reach / Low Profile Air Operated Telescopic Jack 10-40 Tonne

Description

– Model No : YAJ10-40LELR
– Air Consumption : 11.5cfm
– Brand : Premier
– Capacity : 40 Tonne
– Chassis Length : 830mm

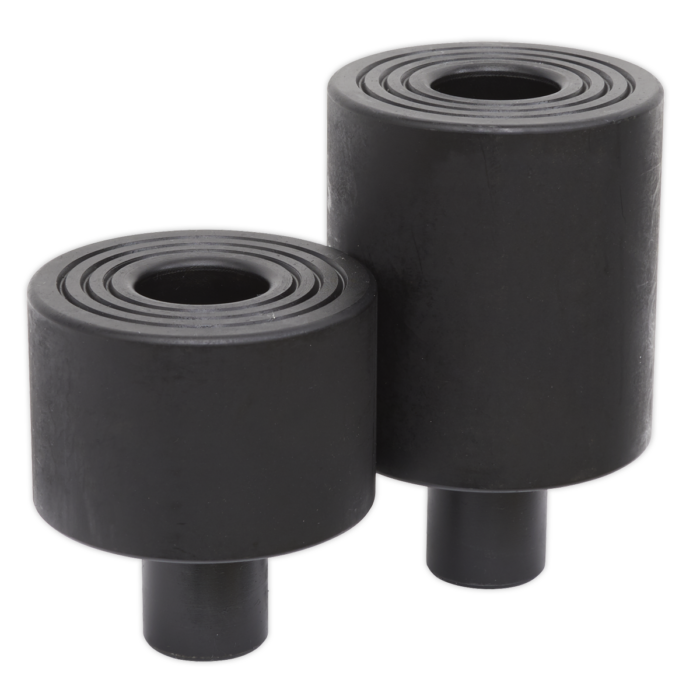

– Extensions : 45/75mm

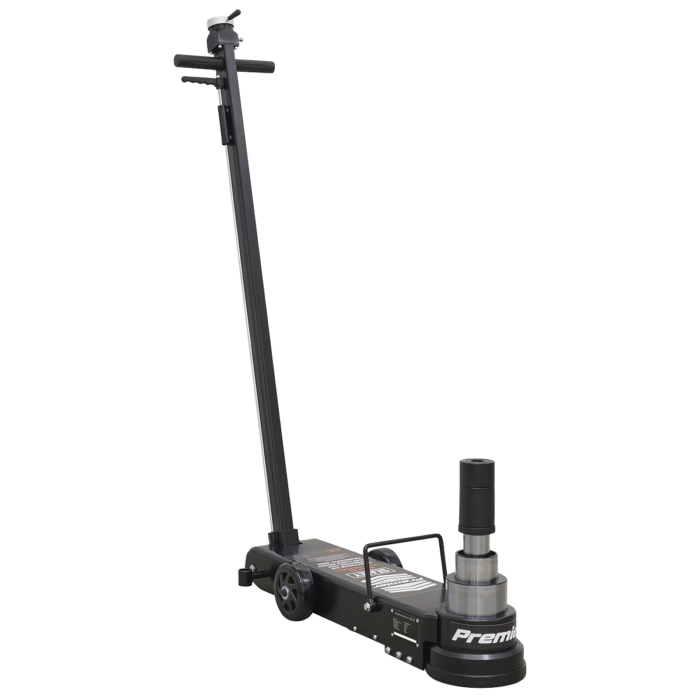

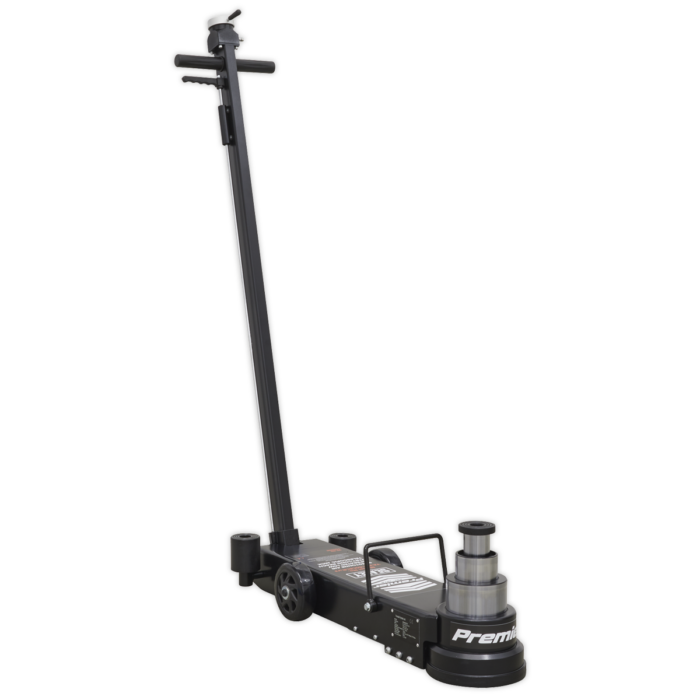

– Maximum Height (inc. Extension)/Capacity-Stage 1 (mm/tonne) : 302/40
– Maximum Height (inc. Extension)/Capacity-Stage 2 (mm/tonne) : 347/20
– Maximum Height (inc. Extension)/Capacity-Stage 3 (mm/tonne) : 396/10
– Maximum Length : 2210mm
– Minimum Saddle Height : 130mm
– Nett Weight : 54kg
– Overall Width : 282mm
– Piston Stroke : 159mm
– Screw Extension : n/a
– Width without Wheels : 179mm
– Working Pressure : 116-174psi
